Aquecer m4a termostato de piso quente tuya wifi & sem wifi 3a 16a elétrica/caldeira a gás/controlador de temperatura de aquecimento de água 1pc

Specifications

Brand Name

NONE

High-concerned chemical

None

Material

Anti-flammable PC

Origin

Mainland China

Voltage

220 V

Type

Floor Heating Parts

Model Number

M4A

Certification

Floor Heating Part Type

Floor Heating Thermostats

Working voltage

100~240V AC 50/60Hz

Max current

16A/3A

Length of sensor cable

NTC, 10K (only for electric 16A type)

Temperature Difference Start

Set Temp. Range

5-35°C

Limit Temp. Range

5-60°C

Power Consumption

<1. 5W

Wire Terminals

Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Choice

yes

Product Description

Description

The M4A thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.

Model Type:

1. GB: Electric floor Heating, 16A (with both internal sensor and floor external sensor)

3. GA: Water Heating / Gas Boiler, 3A (with internal sensor)

Specifications:

Power Supply:100 ~240 VAC, 50~60Hz

Current Load: 3A (water heating, gas boiler), 16A (electric heating)

Sensor: NTC, 10K

Accuracy: ±1°C

Set Temp. Range: 5-35°C

Limit Temp. Range: 5-60°C

Power Consumption: <1. 5W

Shell Material: PC +ABS ( Fireproof)

Installation Box: 86 * 86mm Square or European 60mm Round Box

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Protection Class: IP20

APP:Tuya Smart life

>>Thermostat Functions

- 1. Memory Function

Power off protection, save all your settings safely.

- 2. Programmable Function

Programmable function only for WiFi type, only Programmable on mobile phones.

- 3. Insert and external two sensors. External sensor cable is included for 16A Electric Floor Type.

- 4. Suit for various kinds of electric heating system

The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.

- 5. Wifi function

The wifi thermostat can be controlled by Mobile App wherever you are.

- 6. Support to be voice control by Alexa/Google Home

Package Includes:

1 X thermostat

1 X external sensor (only for Electric Floor Heating 16A Thermostats)

2 X screws

1 X English user manual

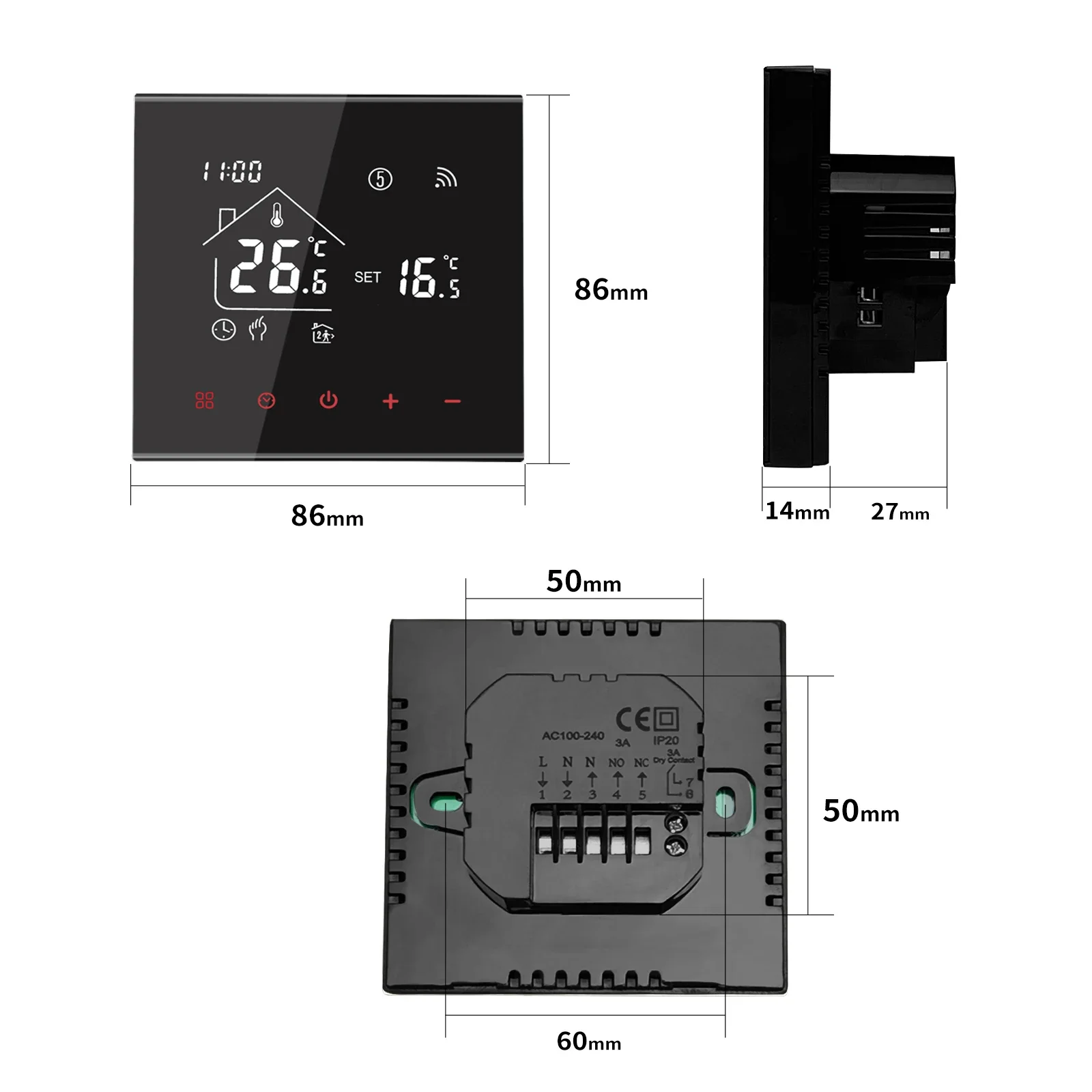

Product Sizes:

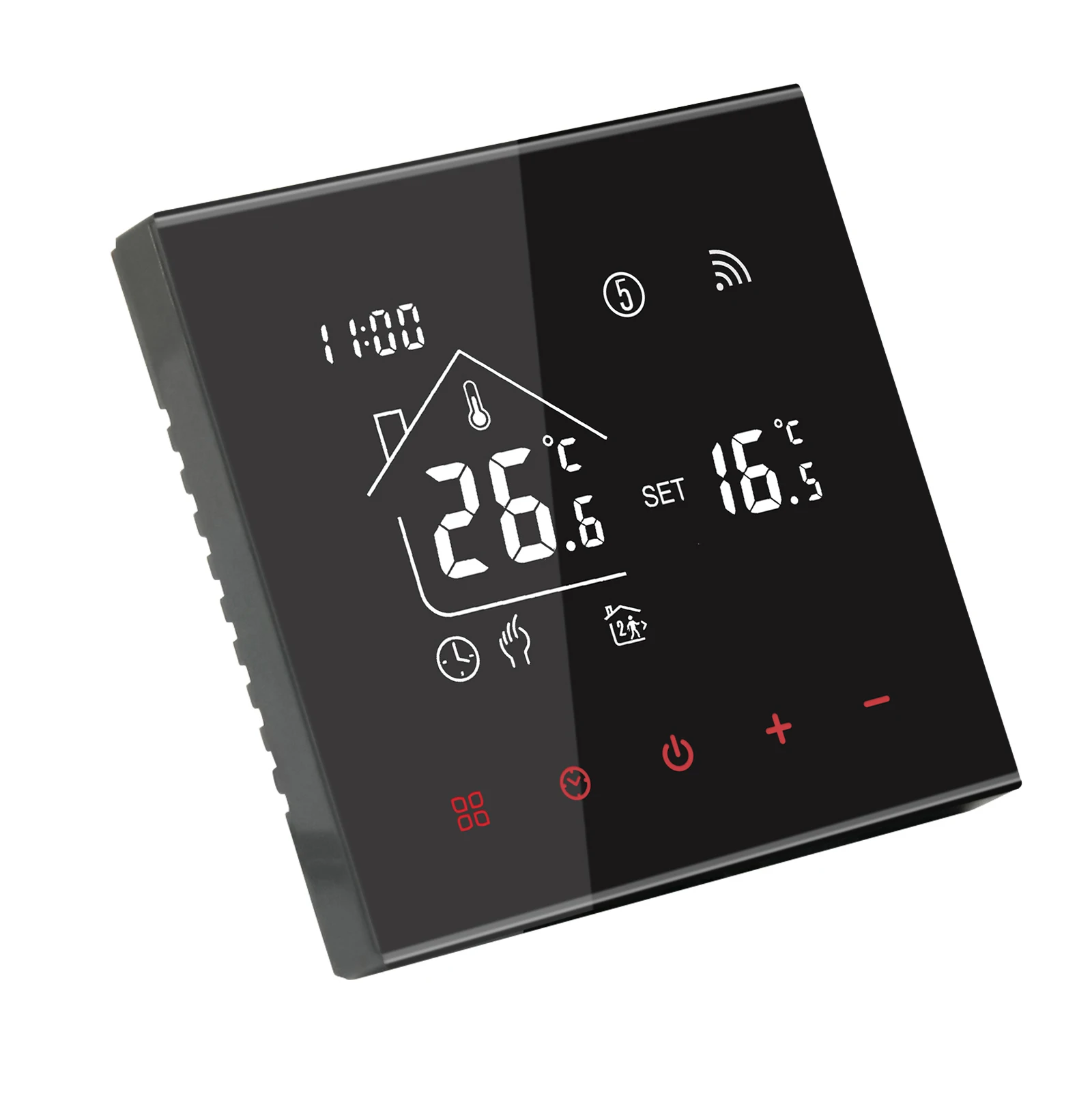

Product Photos:

Installation:

Common Questions

Qual o material do termostato M4A?

PC anti-chama.

Compatível com aquecimento de piso?

Sim, elétrico 16A/3A, caldeira a gás/água, Tuya WiFi opcional.

Faixa de temperatura?

Configuração 5-35°C, limite 5-60°C.

Voltagem e corrente máxima?

100-240V AC, max 16A/3A.

Sensor e instalação?

Cabo sensor NTC 10K 3m (elétrico), terminais para fios 1.5-2.5mm².
