Huidu HD-D16 Asynchronous High Performance Full Color LED Display Control Card Wifi Mode Can Used For LED Matrix Modules - AliExpress.io

Specifications

Brand Name

NONE

High-concerned chemical

None

Origin

Mainland China

Tube Chip Color

Full Color

Model Number

Huidu D16 asynchronous control card

is_customized

Yes

Use

Indoor

Display Function

VIDEO

Power Supply

5V DC

Control range Single color

320*32,640*16

FLASH Capacity

1M Byte

communication

Wi-Fi(within 15meters)

Module type Static to

1/64 scan mode

Gray Scale

256~65536

Communication

U-disk;Wi-Fi;LAN/4G/Wi-Fi.

Port

5V Power X1, 10/100M RJ45 x1, USB 2.0 x1, HUB75E x4

Product Description

HD-D16Full color asynchronous Control System is an LED display control system for Lintel led screens, car screen and full color small size led screens. It is equipped with Wi-Fi module, support mobile APP control and Internet remote cluster control.
Supporting computer control software HDPlayer, mobile phone control software LedArt and HD technology clouds management platform.

HD-D16can play offline with on-board 4GB storage space which is for storing program file

Key Features

● Standard Wi-Fi module, mobile App wireless management;

● Support 256~65536 grayscale;

● Support Video, Picture, Animation, Clock, Neon background;

● Support word art, animated background, neon light effect;

● U-disk unlimited expansion program, plug in broadcast;

● No need set IP, HD-D16 could be identified by controller ID automatically;

● Support 4G/Wi-Fi/ and network cluster management remote management;

● Support 720P video hardware decoding, 60HZ frame rate output.

Application Scenario

1.The internet cluster management diagram is as follows:

2. The control card can be connected directly with the computer Wi-Fi to update the programs, as shown below:

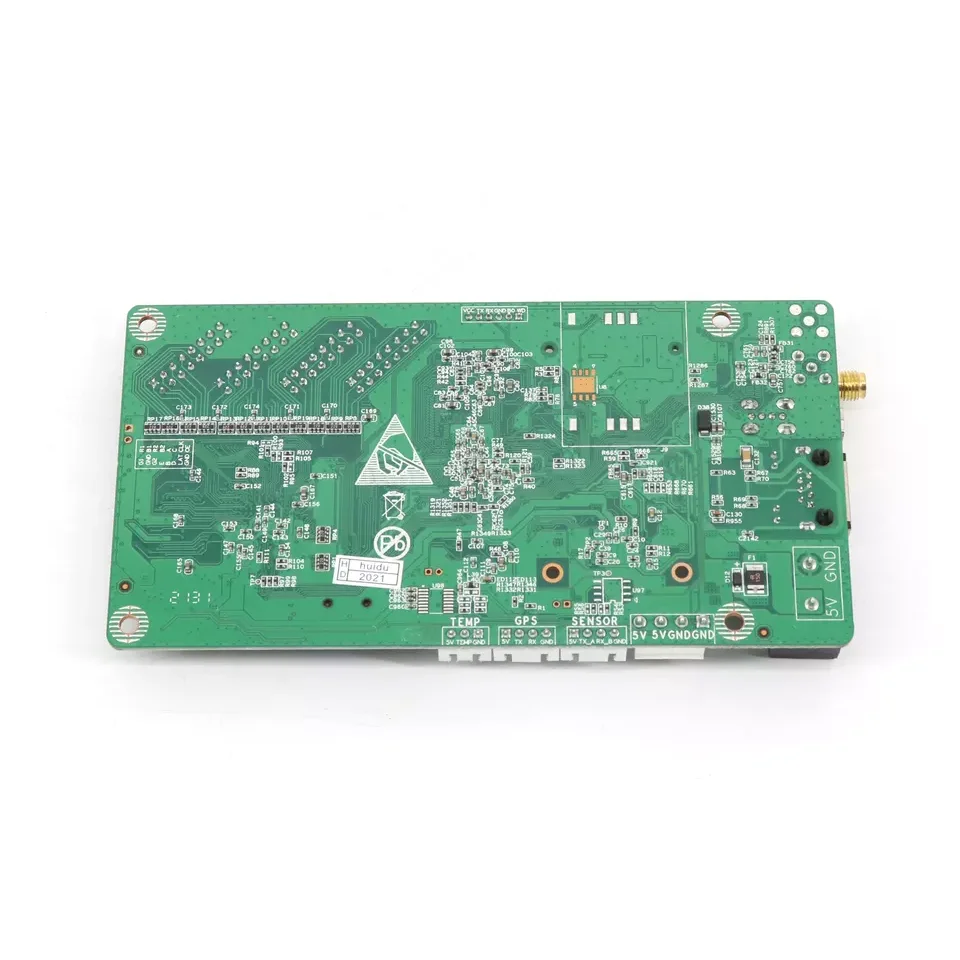

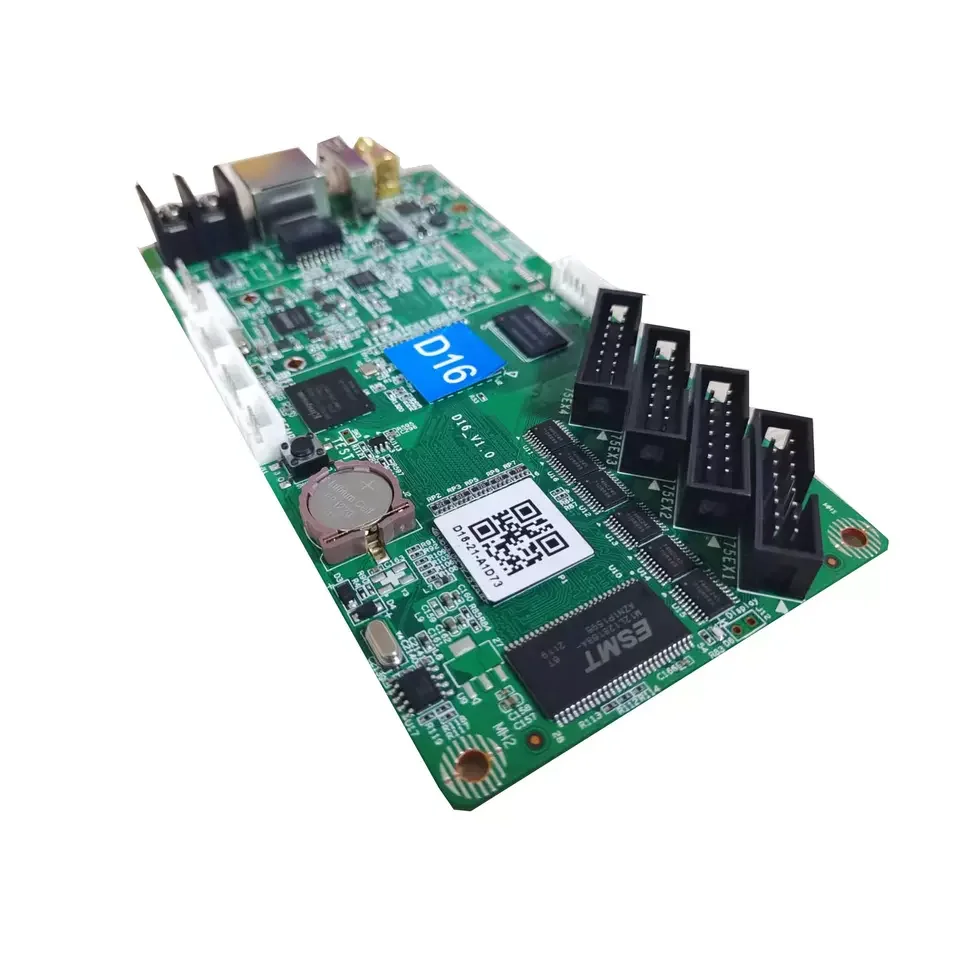

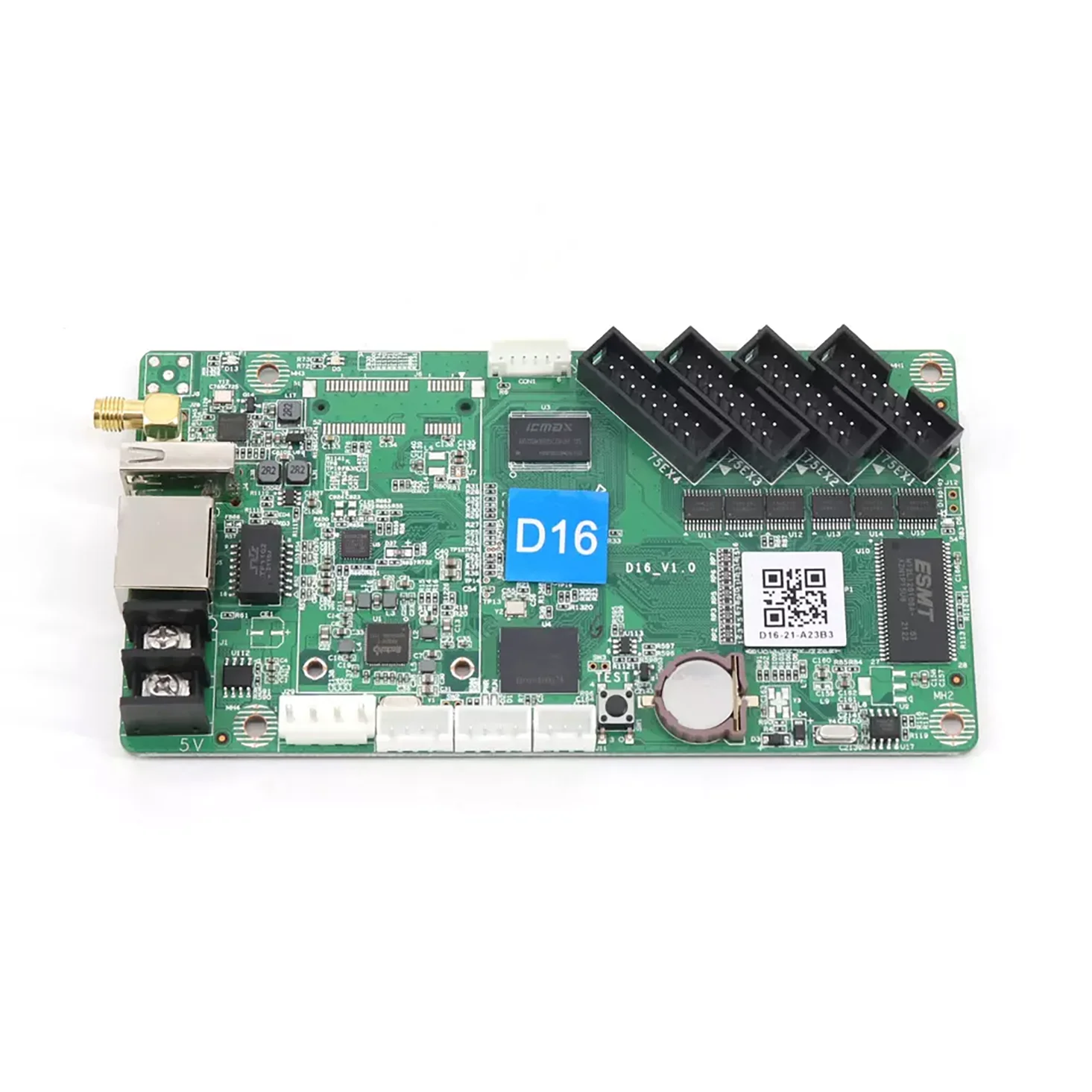

appearance

Interface Description

① Power terminal, connect 5V power;
②RJ45 network port and the computer network port , router or switch connected to the normal working state is orange
light is always on, green light flashes;
③USB port: connect to the USB device for update program;
④Wi-Fi Antenna connector socket: weld antenna socket of Wi-Fi;
⑤4G Antenna connector socket: weld antenna socket of 4G(Optional);
⑥ Wi-Fi indicator light: display Wi-Fi work status;
⑦ 4G indicator light: display 4G network status;
⑧ 4G module: Used to provide control card to access the Internet (Optional);
⑨ HUB75E port: connect LED screen by cable,;
⑩ Display light (Display), normal working state is flashing;
⑪Test button: for test the brightness and contrast of the display screen;
⑫ Temperature Sensor port: for connect to Temperature;
⑬ GPS port: for connect to GPS module, use for time correction and fixed position;
⑭ Indicator light: PWR is the power indicator, the power supply normal indicator is always on; RUN is the indicator, the
normal working indicator flashes;
⑮Sensor port: for connectexternal sensor, Such as environmental monitoring, multi-function sensors, etc.;
⑯ Power port: Foolproof 5V DC power interface,the same function as 1.

Parameter specification

Function	Parameters
Module type	Static to 1-64 scan modules
Control Range	1024*64, Widest: 1024, Highest:256
Gray Scale	256~65536
Video Formats	60Hz frame rate output, support 720P video hardware decoding, direct transmission, no trans-coding waiting. AVI, WMV, MP4, 3GP,ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Animation Formats	SWF,FLV ,GIF
Image Formats	BMP,JPG,JPEG,PNG etc.
Text	Support text message editing, inserting picture;
Time	analog clock, digital clock and a variety of dial clock functions
Other function	Neon, animations function; Clockwise/counter-clockwise count; support temperature and humidity; Adaptive brightness adjustment function
Memory	4GB memory, more than 4 hours’ program support. Indefinitely expanding memory by U-disk;
Communication	U-disk/Wi-Fi/LAN/4G(Optional)
Port	5V Power 1, 10/100M RJ45 1, USB 2.0 1, HUB75E 4
Power	5W

Product size

Huidu HD-D16size:142*75 (unit mm)

Precaution

1）To ensure that the control card is stored during normal operation, make sure the battery on the control card is not loose;
2）In order to ensure the long-term stable operation of the system; please use the standard 5V power supply voltage.

Pros & Cons

Pros

Wi-Fi and APP control for easy wireless management
Supports multiple comms: U-disk, LAN, 4G
High performance for small full color LED screens
Multiple HUB75E ports for flexible setups

Cons

Limited to 15m Wi-Fi range
No brand specified, potential quality variance
Mainland China origin with possible shipping delays
Description incomplete on full features

Common Questions

What control range does the Huidu HD-D16 support for single color displays?

Supports 320*32 or 640*16 pixels for single color LED matrices.

What communication options are available on the HD-D16 LED control card?

Wi-Fi (15m), U-disk, LAN/4G/Wi-Fi, with mobile APP and HDPlayer software.

What ports does the Huidu D16 asynchronous control card have?

5V Power X1, 10/100M RJ45 x1, USB 2.0 x1, HUB75E x4.

Is the HD-D16 suitable for indoor full color LED screens?

Yes, for indoor use, full color, static to 1/64 scan, gray scale 256~65536.

What is the FLASH capacity and power supply for this LED controller?

1M Byte FLASH, 5V DC power supply.
