New AnyTone AT-778UV 25W Dual Band 136-174 & 400-480MHz Amateur Radio Walkie Talkie
You will be redirected to AliExpress to complete your purchase
Specifications
- Brand Name
- cmaos
- High-concerned chemical
- None
- Maximum Power Per Channel
- 25 W
- Origin
- Mainland China
- Package
- Yes
- Model Number
- AT-778UV
Product Description
Description;

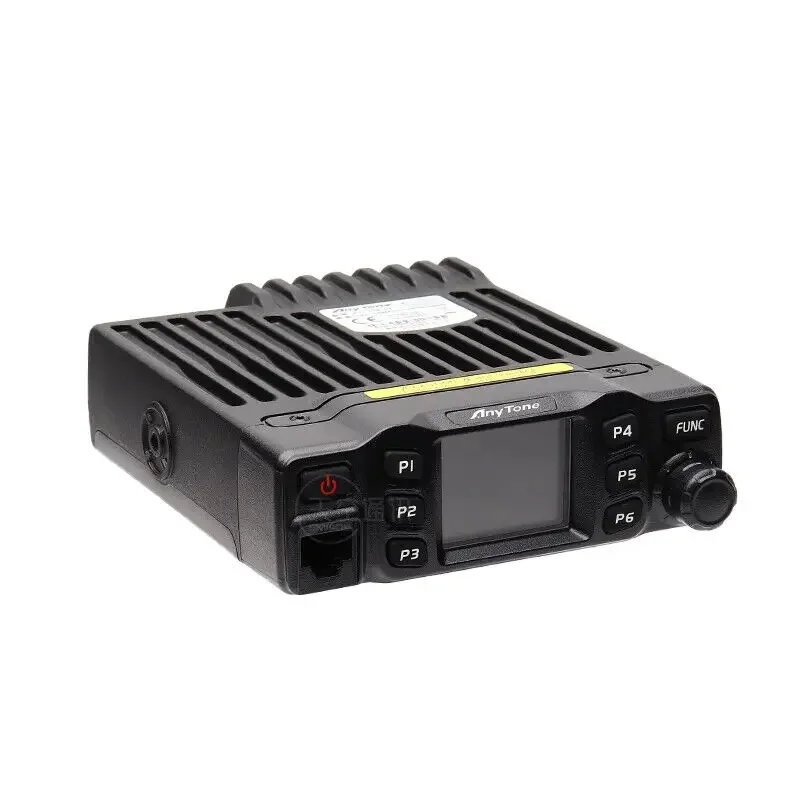

25W/15W/5W DualBand VHF/UHF Mobile Radio Transceiver! Color LCD. 180 degree rotatable TFT LCD display.
• Frequency Range: VHF:136-174MHz UHF:400-480MHz
• Features CTCSS, DCS, 200channels & more!
• Single Call, Group Call, Selective Call and Emergency call are all available.
• Narrow Band compliant,Lighted Keypad mic, Built-in Speakers in both Radio & Mic,Built-In cooling Fan,DC power cable with fuse holder & More!
Specifications:
General:
Frequency Range: VHF:136-174MHz UHF:400-480MHz
Number of Channels:200 channels
Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)
Phase-locked Step:2.5KHz, 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,20KHz, 25KHz,30KHz,50KHz
Operating Voltage:13.8V DC ± 15%
Squelch:Carrier/CTCSS/DCS
Frequency Stability:±5ppm
Operating Temperature:-20℃~+60℃
Dimensions(W*H*D)112(W)*30(H)*14.2(L)mm
NetWeight:About 0.51Kg
Receiver(ETSI EN 300086 standard testing)
Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV
Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB
Audio Response Wide band: +1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Hum&Noise :Wide band:≥45dB Narrow band:≥40dB
Audio distortion:≤5%
Audio power output:>2W@8Ω
Transmitter(ETSI EN 300 086 standard testing)
Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W
Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E
Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB
Hum&Noise:Wide band:≥40dB Narrow band:≥36dB
Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB
Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Audio Distortion:≤5%
Pros & Cons
Pros
- High 25W power for long-range communication
- Dual band VHF/UHF versatility
- Color LCD with rotation for easy viewing
- Advanced features like CTCSS/DCS and 200 channels
Cons
- Requires amateur radio license for legal use
- Mobile/base unit, not handheld portable
- Programming may need additional software
- No built-in GPS or modern digital modes
Common Questions
What bands and power does the AnyTone AT-778UV support?
Dual band VHF 136-174MHz and UHF 400-480MHz, up to 25W power output.
What is the size and display of this walkie talkie?
Mobile radio transceiver with 180-degree rotatable color TFT LCD display, 200 channels.
Is this radio compatible with CTCSS/DCS?
Yes, supports CTCSS, DCS, narrow band, group calls, and emergency features.
How do you use this amateur radio?
For amateur radio communication; install in vehicle or base, program frequencies and channels.
What packaging and shipping includes?
Package: Yes; originates from Mainland China, standard shipping.
Product information last updated on April 20, 2026
