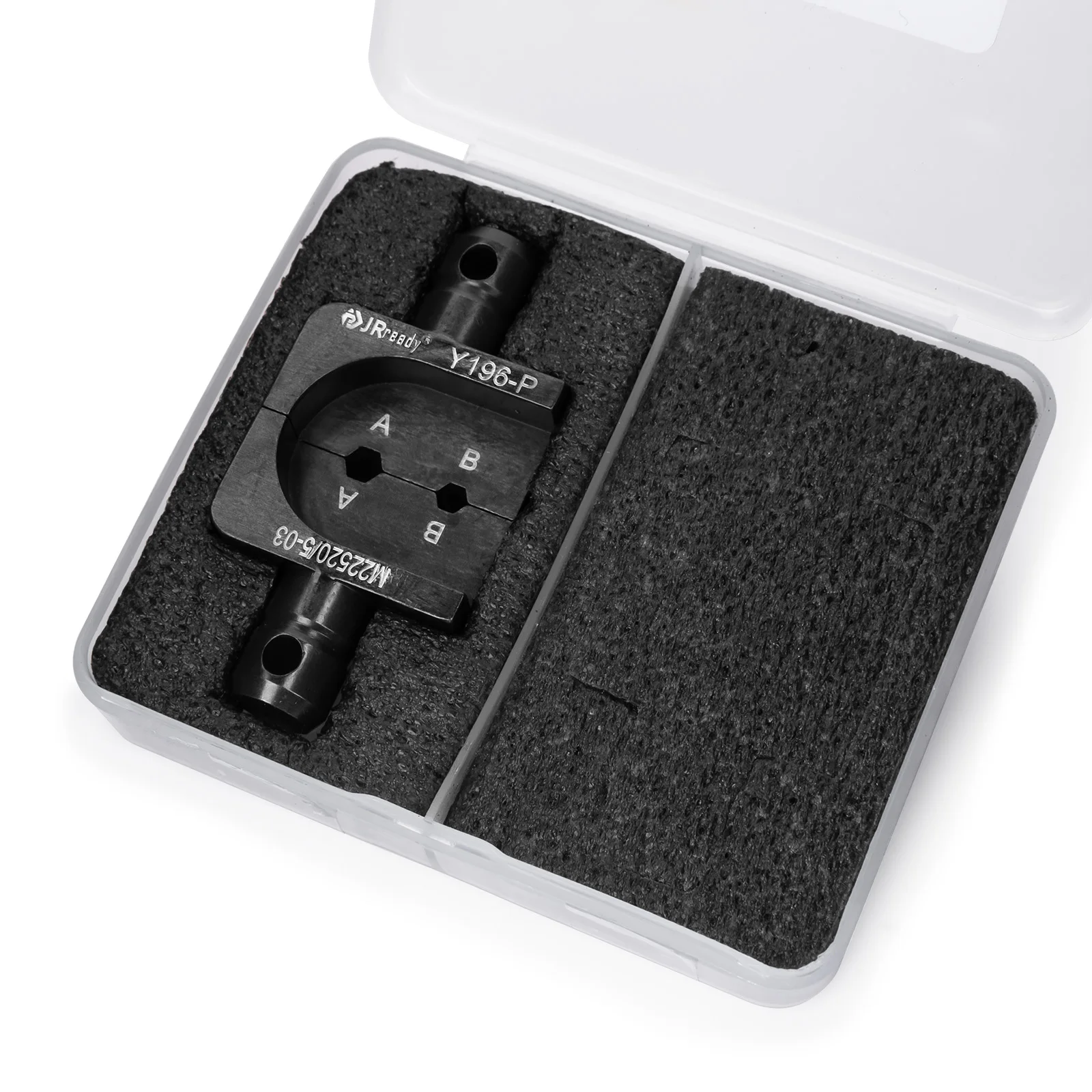

JRready M22520/5 Series Die Set is used with the YJQ-W5/HX4 m22520 5 01/YJQ-UDT5 tool tool frame

Product Description

JRready M22520/5 Series Die Set is used with the YJQ-W5/HX4 m22520 5 01/YJQ-UDT5 tool tool frame

1. Designed in compliance with U.S. Military Standard M22520/5-03

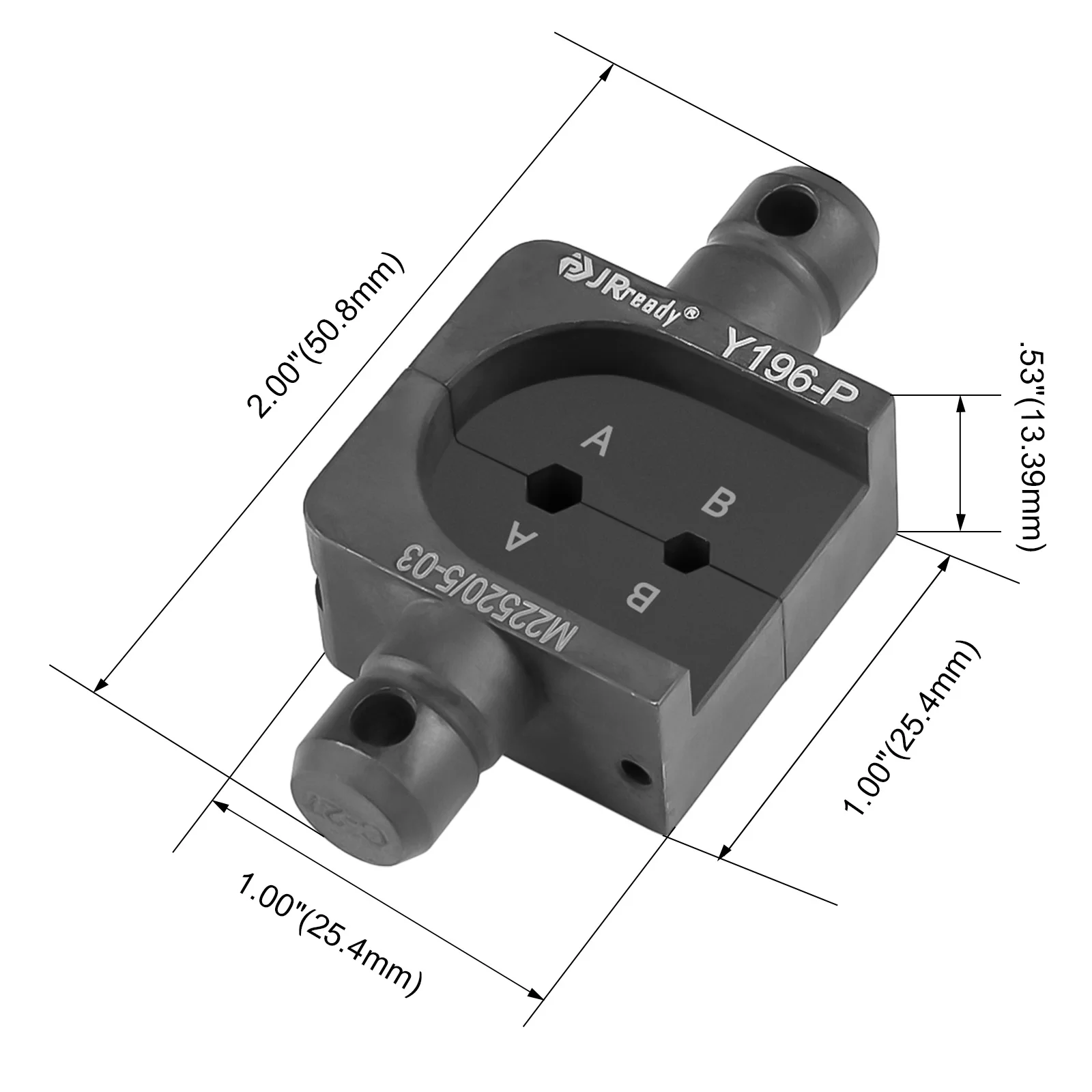

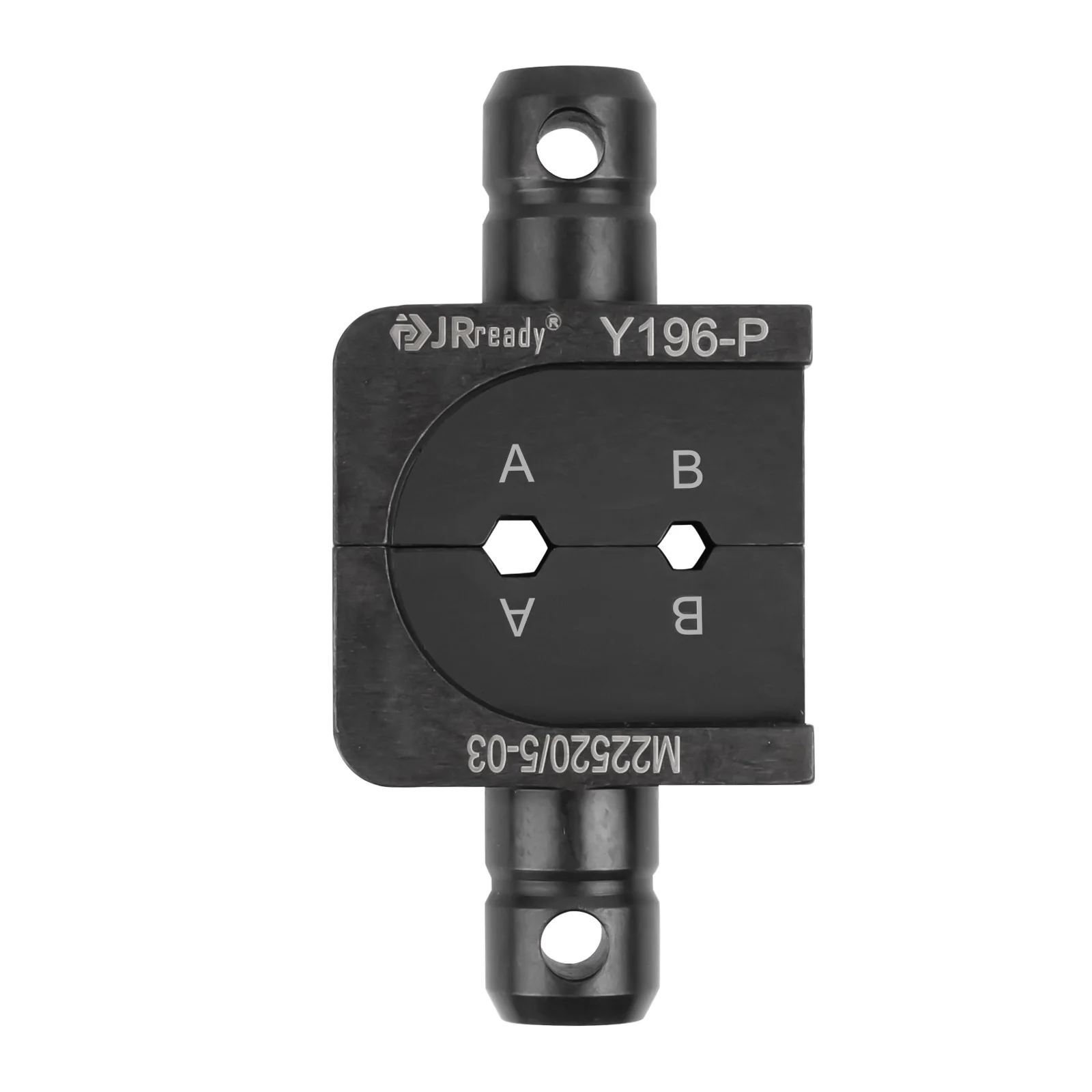

2. Die A: Opening 3.25mm, Crimp Length 8.26mm; Die B: Opening 2.67mm, Crimp Length 8.26mm

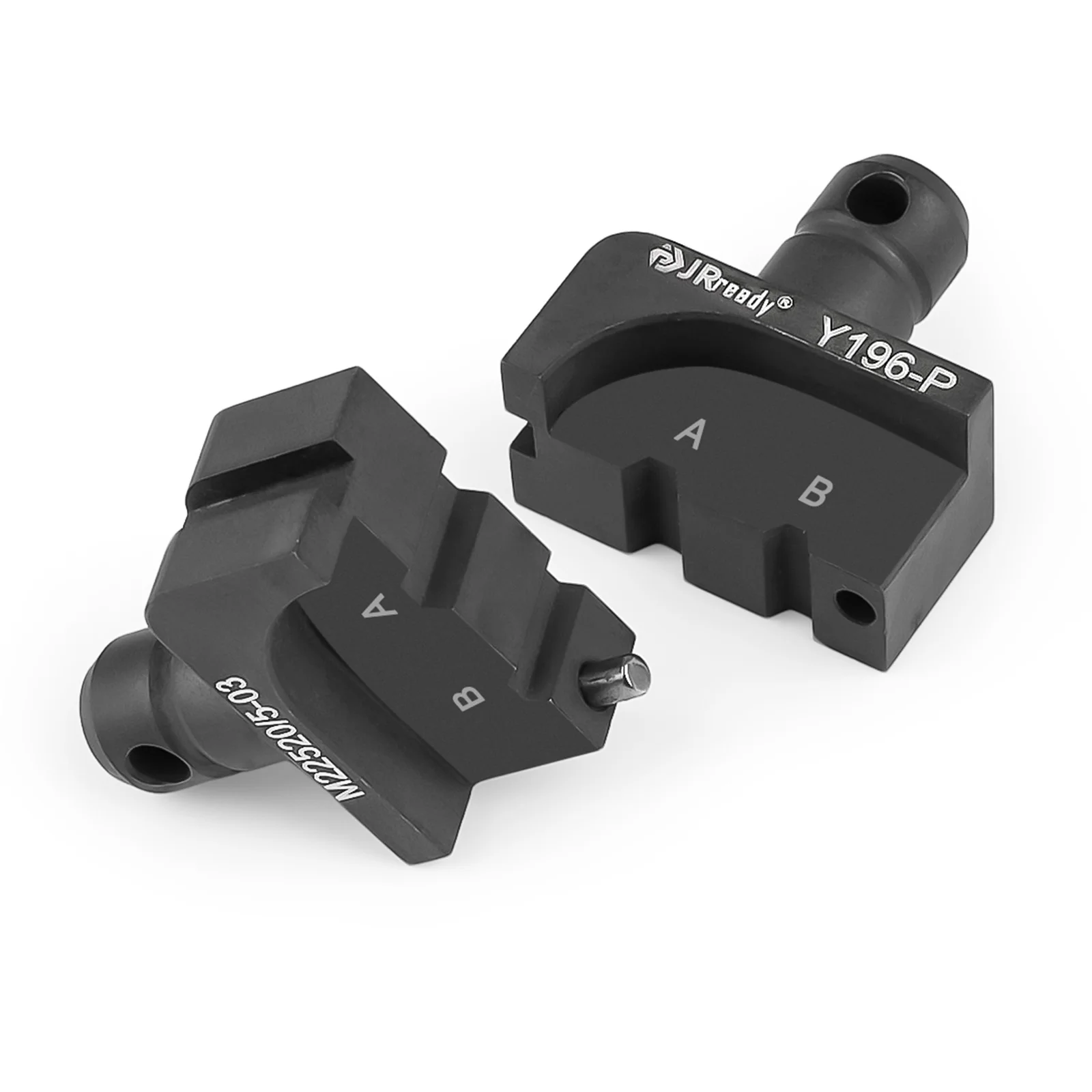

3. Integrated guide pin ensures consistent die alignment during operation

4. Compatible with crimping tool models YJQ-W5 and YJQ-UDT5

Crimp Styles

Interchangeable dies can be installed and fixed in a proper position with pins. According to the needs of customers, we can continuously develop new dies, and we can also specially design and manufacture tool kits.

Die Installation & Removal

Die Installation

1. Align die rail slots in die halves with the rail in the crimp tool and push shank of dies into holes. Dies will snap into place. (See Figure 1)

2. Close tool handle to make sure dies are properly seated. The tool is now ready for use.

Die Removal

1. With the crimp tool handle open, place die removal tool against end hammer (See Figure 2). The die will be released from the front die holder. It can now be removed by hand.

2. Close the crimp tool handle and slide the die removal tool between the die and tool body (See Figure 3). Pull handle open with a snap action. The die will be released and can then be removed by hand.

Die Combination

1. Install the die on the crimp tool handle;

2. After installing the die, force the locking pin into the hole and keep it flush. The long locking pin is inserted into the tool frame and the short locking pin is inserted into the push rod (see Figure 4).

Note: Die removal tool part number HX3-82 is furnished with crimp tool. If die removal tool is not available, a rod approximately 3/16’’ diameter X 13/4’’ long may be used.

Wrapped Contacts

Shielded Wires

Amphenol Contacts

Why choose us

1. We have more than 14 years of manufacturing experience.

2. We have professional and independent R&D teams.

3. We have excellent products with reasonable price.

4. We provide all kinds of customizable services.

5. We will always meet your different needs in products.

Company information

Brief Introduction of Precisetool Precision Equipment

Professional harness & equipment service provider, focusing on the design and manufacturing process of advanced harness, serving military industry, aerospace and other top industrial fields.
After 22 years of intensive cultivation, JRready has more than 6000 square meters of production bases in Zhejiang and Guangdong, with dozens of engineers and more than 100 technicians. Relying on Zhejiang Jingrui Instrument & Equipment Co., Ltd. as the production and manufacturing base, based on the development of Shenzhen Jieruide Connection Technology Co., Ltd., and the service and sales of Shenzhen Jieruide Equipment Co., Ltd. JRready has formed a mature one-stop service of research, development, production and sales. JRready's products are rooted in China and exported to the world.

FAQ

Q1:Can I get a sample?

A:Yes,sample orders welcomed, but the customers need to pay the sample cost and the courier cost.

Q2:Can I trust you?

A:Absolutely YES.We are "Alibaba" verified supplier.

Q3:May I visit your factory?

A:Sure,welcome any time.

Q4. What is your terms of payment?
A: We accept Paypal, Western union, payment by T/T in advance or LC, Money gram and Alibaba trade assurance.（Different country has different payment policy）

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefit .
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Every new product can be made accurately by your design and demand.

Pros & Cons

Pros

MIL-STD M22520/5-03 compliant for professional use
Precise die sizes for BNC crimping
Carbon steel durability with guide pin
Customizable and dismountable

Cons

Specialized for electrical DIY, not general use
Requires compatible tool frame
Niche application limits versatility
No user reviews on ease of setup

Common Questions

What material is the JRready M22520/5 Die Set made from?

Carbon steel material, compliant with MIL-PRF-39012/19 standards for durability.

What are the sizes of the dies in this set?

Die A: 3.25mm opening, 8.26mm crimp length; Die B: 2.67mm opening, 8.26mm crimp length.

What tools and applications is this die set compatible with?

Used with YJQ-W5/HX4, M22520/5-01, YJQ-UDT5 frames; for BNC series crimping.

How is this die set used for crimping?

Dismountable design with integrated guide pin for consistent MIL-spec crimps on connectors.

Shipping information for this tool from Mainland China?

Origin Mainland China; reliable global shipping, 5-15 days typically.
