RX5808 Receiver Module Wireless Audio Video Receiver Module 5.8G SPI/switch Control for FPV Systems RC Helicopter 4.8~6.0GHz
519+ sold
$27.43
0% OFFBuy on AliExpress
You will be redirected to AliExpress to complete your purchase
Specifications
- Dissipation Power
- RX5808 Wireless Audio Video Receiver Module
- Application
- Speaker
- Brand Name
- Gaqqee
- Quantity
- 1
- High-concerned chemical
- None
- Package
- SMD
- Operating Temperature
- 0-50C
- Origin
- Mainland China
- is_customized
- Yes
- Condition
- New
- Type
- Module
- Supply Voltage
- 3.3V 5V
- Choice
- yes
- semi_Choice
- yes
Product Description
Product selling points:
1.100% brand new high-quality products.
2. Made of high-quality materials, durable and practical.
3. Small size, simple application, and easy operation.
4. Long service life, reliable performance, low power consumption, and high precision.
5. Widely applicable.
Product parameters:
Style: SPI control, switch control
Receiving frequency: 5645-5945MHz
Receiving sensitivity:- 90dBm
Low power consumption: 5V 170mA
Supply voltage: 3.3V
Supply current: 170mA

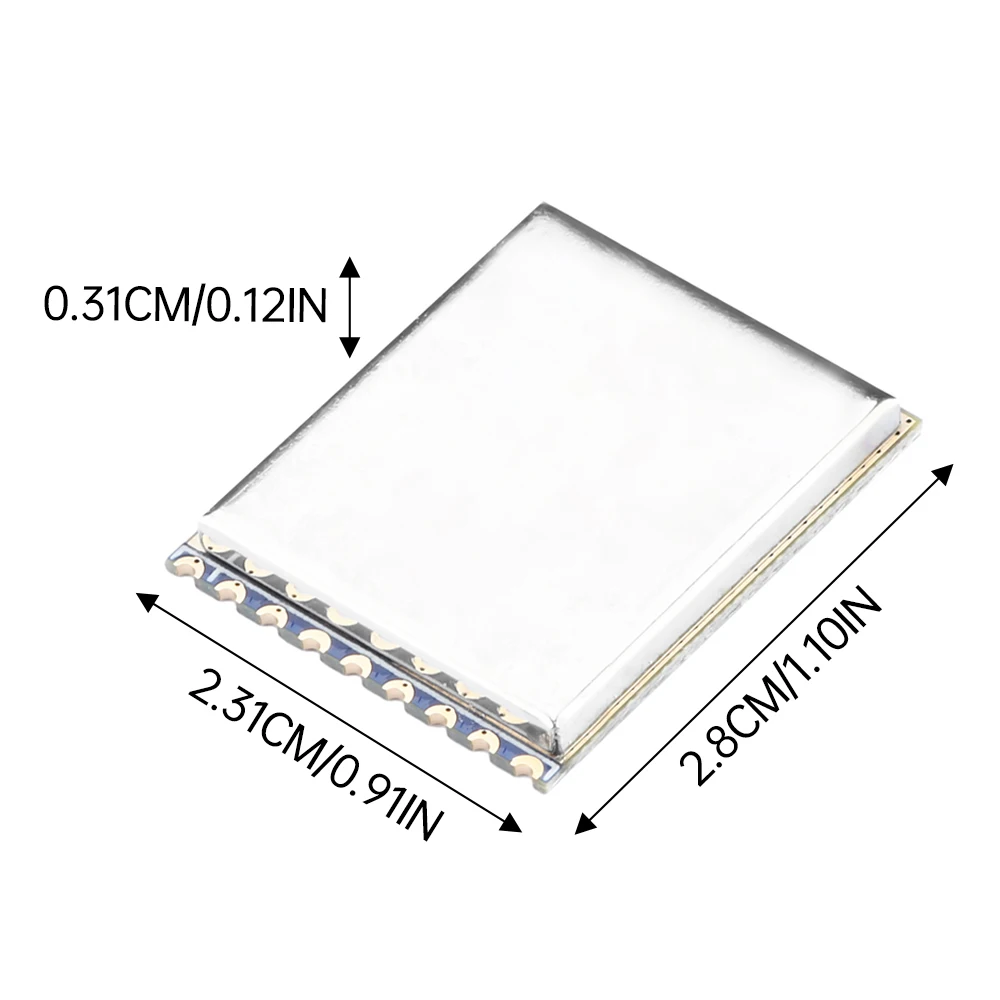

Size: 28 * 23 * 3mm
difference:
SPI mode: It is controlled by a peripheral microcontroller to create channels such as 40, 48, 56, 72, and 80.
Switch control: It is to control the channel through the dip switch, and the dip switch can only make the channel 8.
Packing list:
Receiving module * 1
Pros & Cons
Pros
- Wide 4.8-6.0GHz range for diverse FPV frequencies.
- Supports SPI/switch control for versatile setups.
- Low power consumption and high precision.
- Durable high-quality materials for RC helicopters.
Cons
- SMD package requires soldering skills.
- No antennas or accessories included.
- Limited to receiver function only.
- Operating temp up to 50°C may limit extreme use.
Common Questions
What frequency range does the RX5808 receiver module cover?
It operates from 4.8 to 6.0GHz, ideal for 5.8G FPV systems.
What is the supply voltage for this wireless audio video receiver?
Supports 3.3V or 5V supply voltage for RC helicopter FPV use.
Is the RX5808 module compatible with SPI/switch control?
Yes, it features SPI/switch control for easy integration in FPV setups.
What is the operating temperature range of the module?
0-50°C operating temperature, suitable for most outdoor RC applications.
How is the RX5808 shipped and what packaging does it use?
Ships from Mainland China in SMD package; expect 7-20 days delivery.
Product information last updated on March 18, 2026
