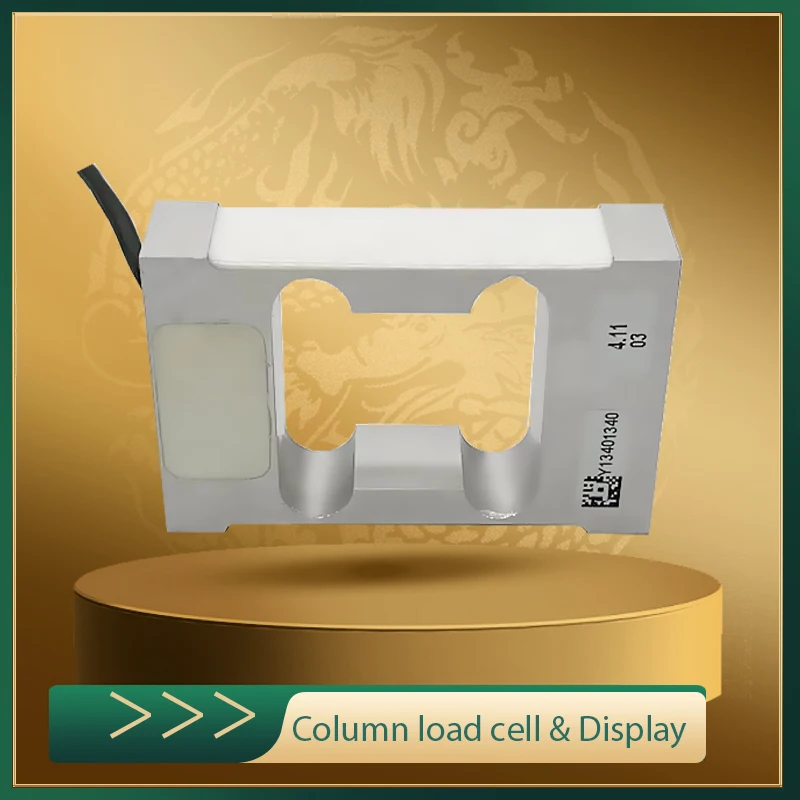

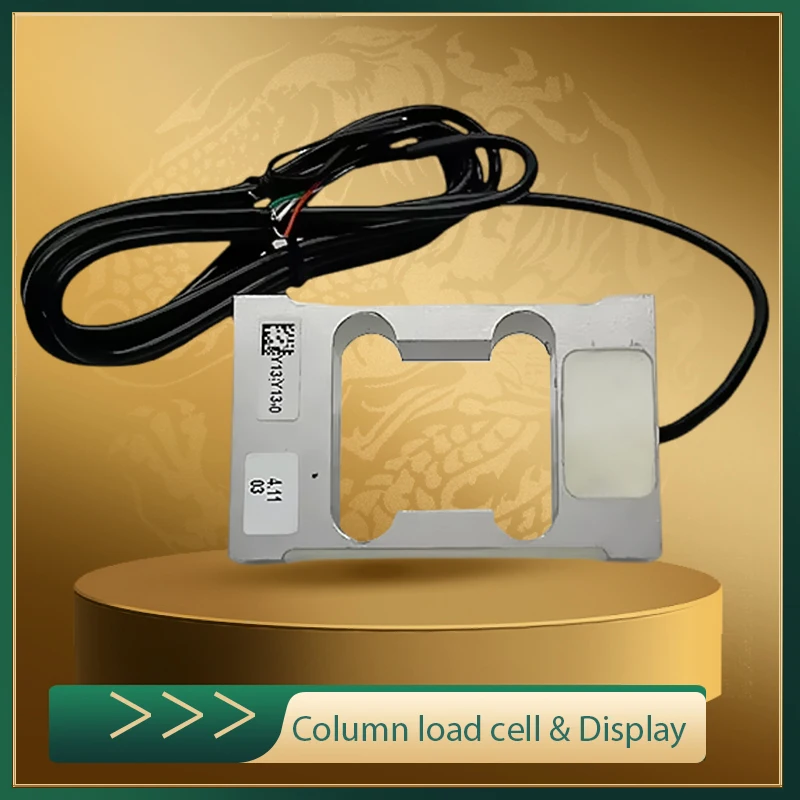

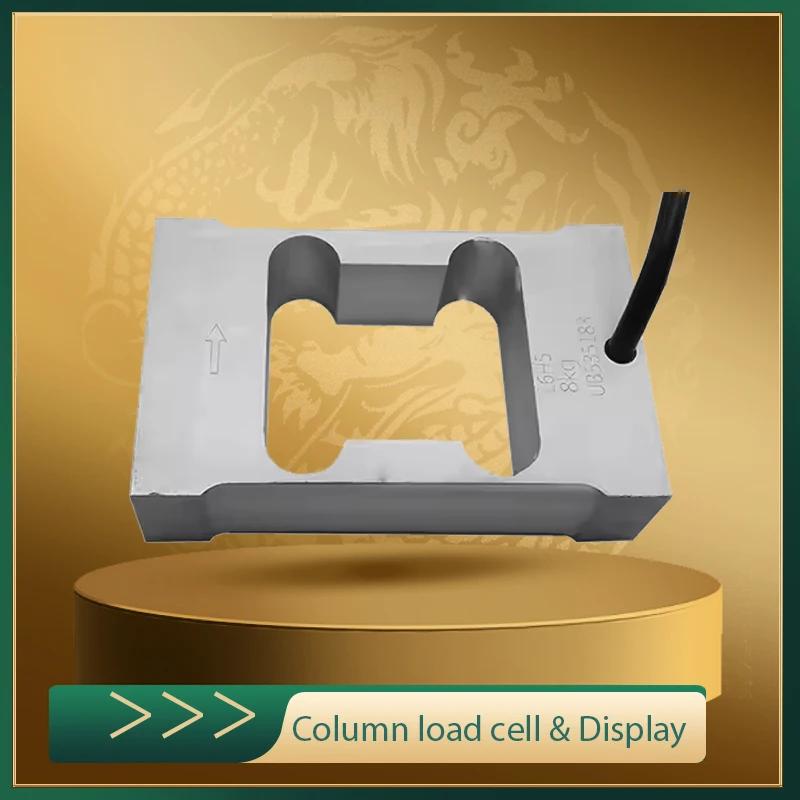

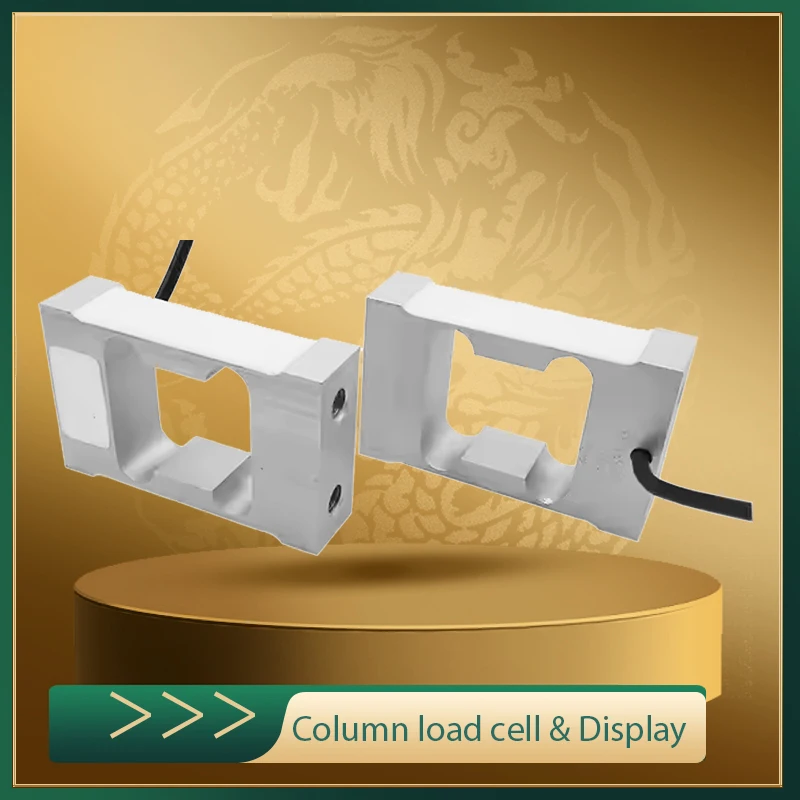

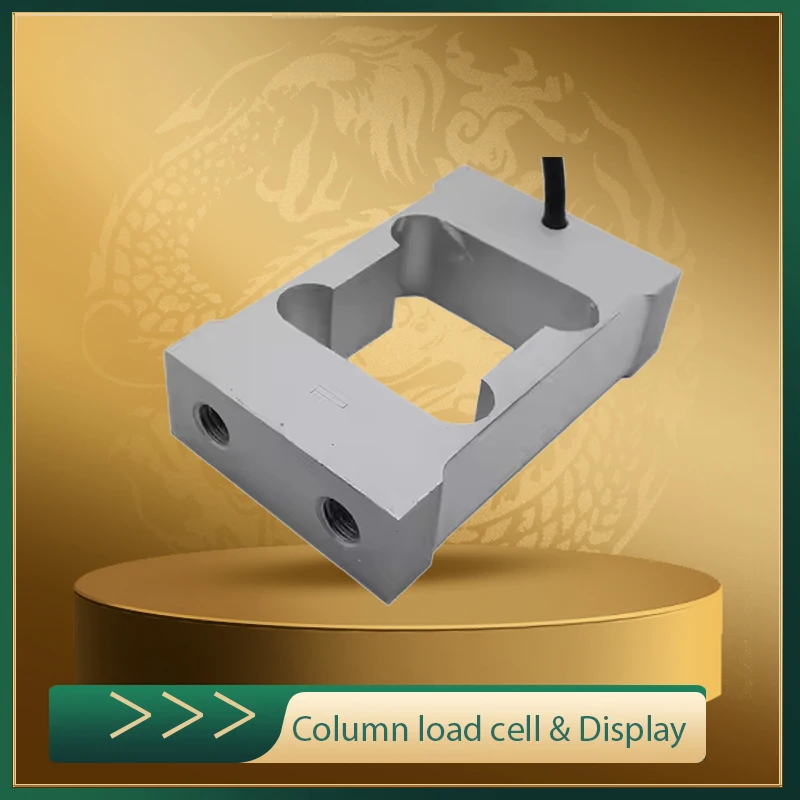

L6H5 High Precision Force Load cell Sensor, Suitable for Various Load Measurements, Industrial and Research Applications
You will be redirected to AliExpress to complete your purchase
Specifications
- Brand Name
- ZHIZHONGYIQI
- High-concerned chemical
- None
- Origin
- Mainland China
- Output
- Analog Sensor
- Theory
- Inductance Sensor
- Type
- vibration sensor
- is_customized
- Yes
- Use
- Pressure Sensor
- Material
- Metal
- Rated load
- 4kg/5kg/6kg/8kg/10kg/15kg/20kg/30kg
- Precision
- C3
- Output sensitivity
- 2.0±0.2mV/V
- Creep
- ≤±0.0167%F.S/30min
- Temperature effect on output sensitivi
- ≤±0.0175%F.S/10℃
- Temperature effect on zero output
- ≤±0.02%F.S/10℃
- Zero output
- ≤2%F.S
- Temperature compensation range
- -10~+40℃
- Allowable use temperature range
- -35~+65℃
- Input impedance
- 406±6Ω
- Output impedance
- 350±3Ω
- Insulation impedance
- ≥5000(50VDC)MΩ
- Recommended Excitation voltage
- 5~12(DC)V
- Maximum excitation voltage
- 18(DC)V
- Safe overload range
- 120%F.S
- Limit overload range
- 150%F.S
- Protection level
- IP65
- Cable specification
- d3.8
- Cable length
- 0.17m
Product Description
Product Paramenters | |||
Rated load | 4kg/5kg/6kg/8kg/10kg/15kg/20kg/30kg | Output sensitivit-y | 2.0±0.2mV/V |
Precision | C3 | Composite error | ≤±0.02%F.S |
Creep | ≤±0.0167%F.S/30min | Temperature eff-ect on output se-nsitivity | ≤±0.0175%F.S/10℃ |
Temperature effect on zer-o output | ≤±0.02%F.S/10℃ | Zero output | ≤2%F.S |
Temperature compensatio-n range | -10~+40℃ | Allowable use te-mperature range | -35~+65℃ |
Input impeda-nce | 406±6Ω | Output impedan-ce | 350±3Ω |
Insulation im-pedance | ≥5000(50VDC)MΩ | Recommended e-xcitation voltage | 5~12(DC)V |
Maximum ex-citation voltage | 18(DC)V | Safe overload ra-nge | 120%F.S |
Limit overloa-d range | 150%F.S | Protection level | IP65 |
Cable specific-ation | Φ3.8 | Cable length | 0.17m |
Pros & Cons
Pros
- C3 precision with 0.02%FS accuracy for reliable measurements
- Wide load range 4-30kg, overload to 150%FS
- IP65 protection for harsh environments
- Temperature compensated -10 to +40°C
Cons
- Short 0.17m cable may need extension
- Analog output requires external amplifier
- Max excitation 18V limits some setups
- Creep and temp effects per specs need calibration
Common Questions
What material is the L6H5 load cell sensor?
All-metal construction for high precision industrial use; IP65 protection.
What load capacities and size for this force sensor?
Rated 4kg to 30kg; cable d3.8mm, 0.17m length; compact design.
Is this sensor compatible with various measurement applications?
Yes, for pressure, weight, force in industrial/research; 5-12VDC excitation.
How do I use the L6H5 for load measurements?
Connect to amplifier, apply excitation voltage; output 2.0mV/V sensitivity C3 precision.
Shipping for this high-precision load cell?
From Mainland China; customizable, 10-25 days delivery.
