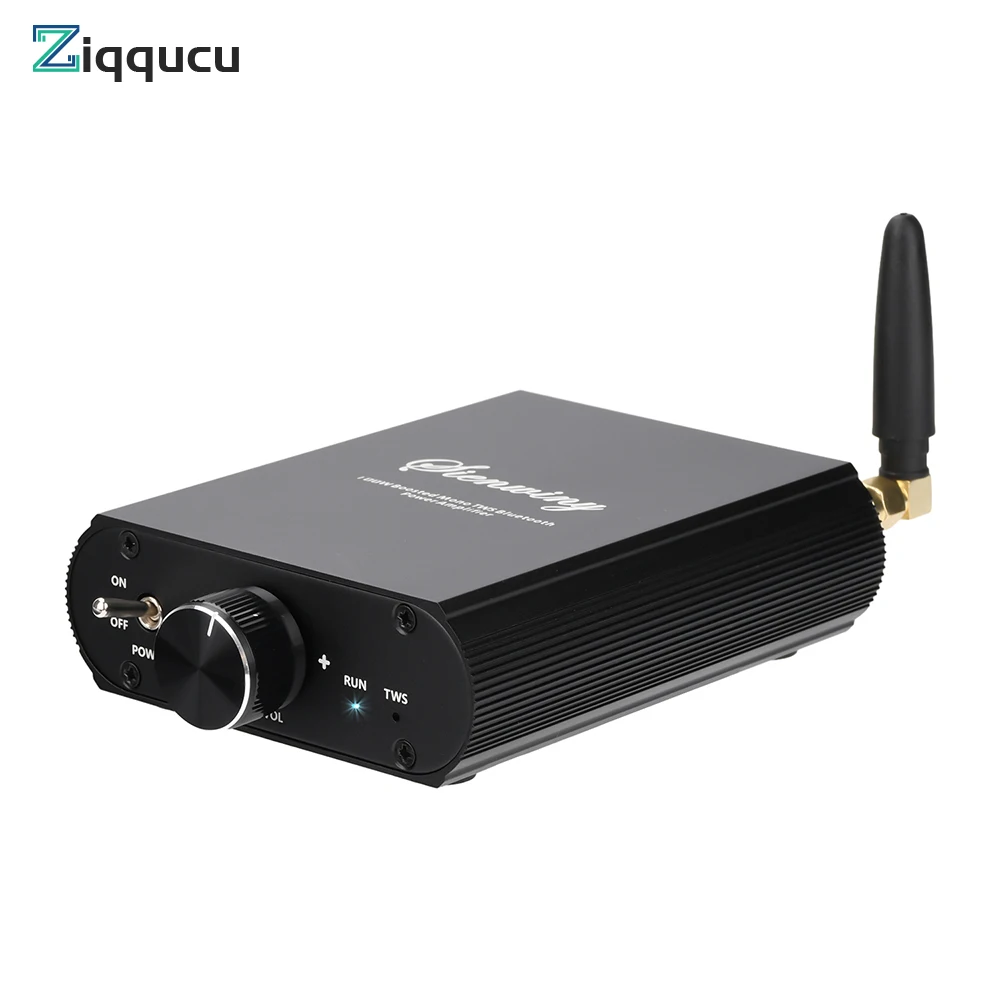

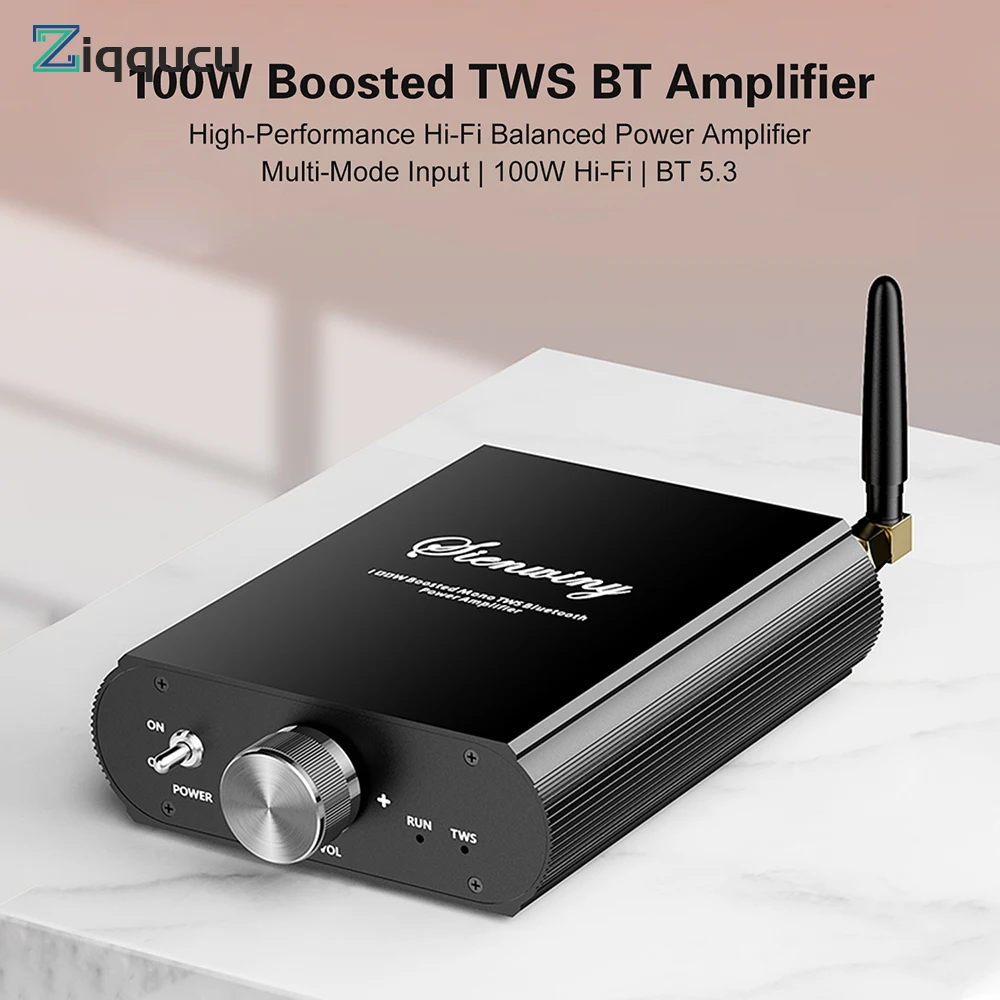

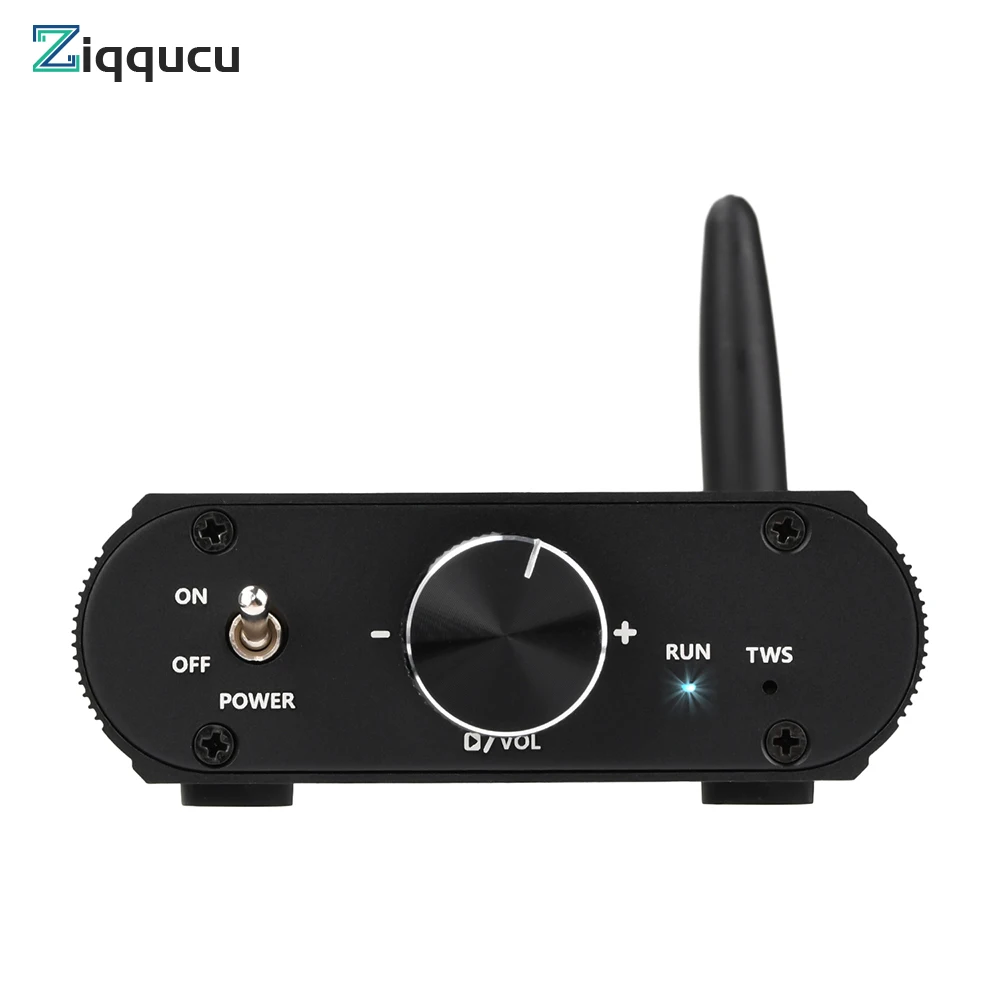

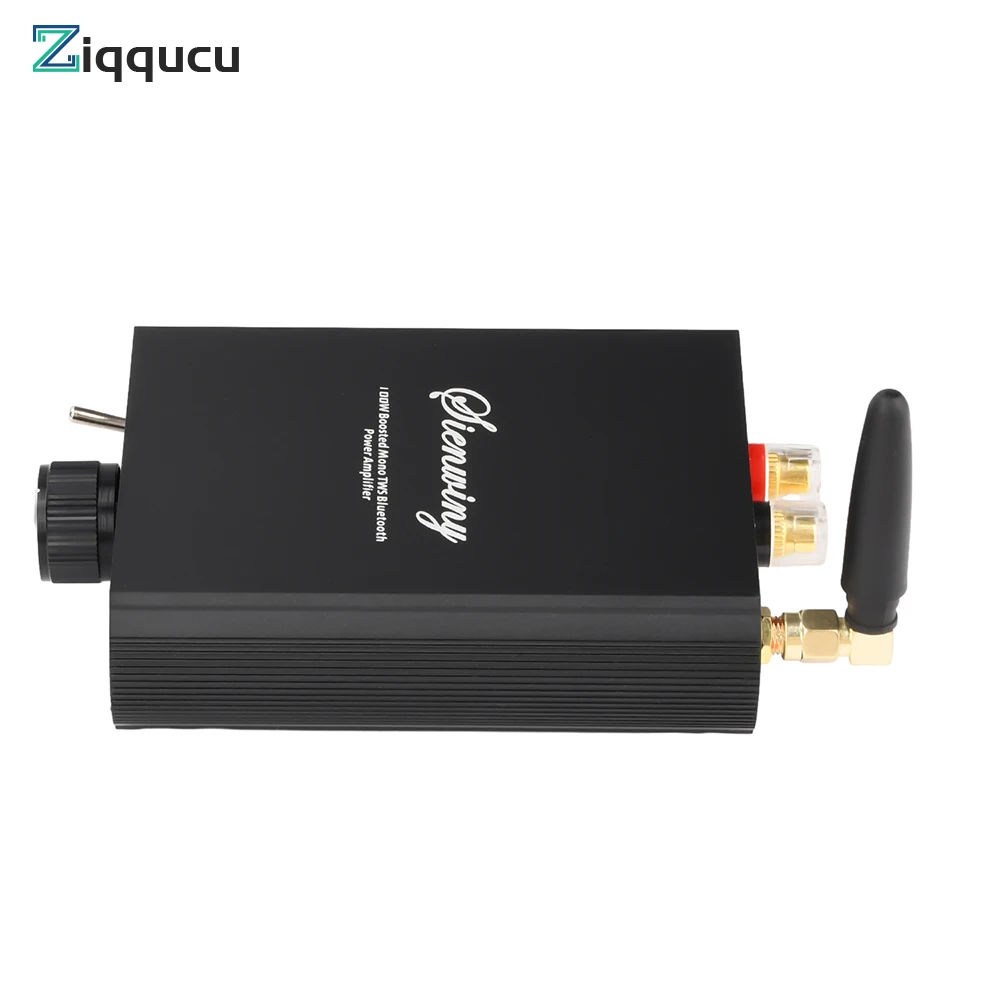

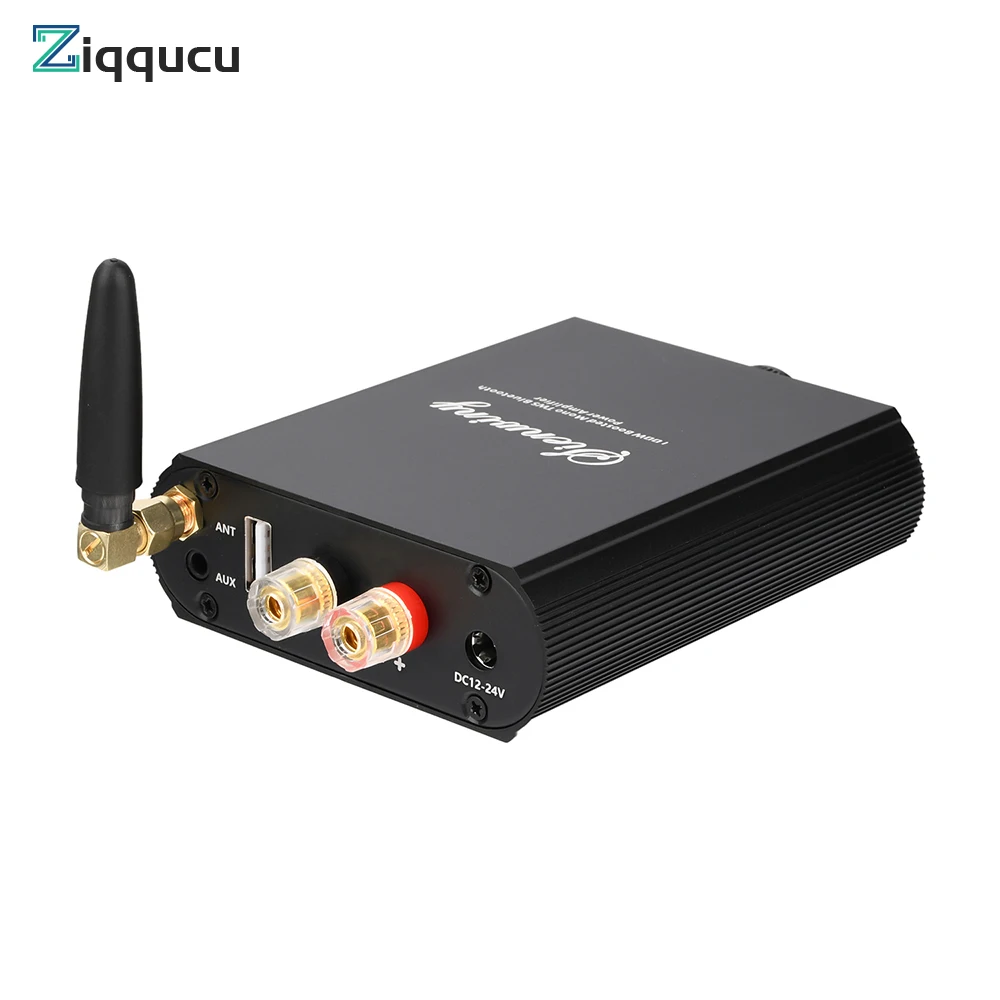

DC12-24V YS-T100W BT 5.3 TWS BT Amplifier 100W Mono Amplifier Board TPA3116 Chip With Boost And App Control For Outdoor/PC EU/US
You will be redirected to AliExpress to complete your purchase
Specifications
- Brand Name
- Ziqqucu
- Origin
- Mainland China
- High-concerned chemical
- None
- Condition
- New
- Type
- Module
- Supply Voltage
- 12~24V
- Dissipation Power
- Low
- is_customized
- Yes
- Quantity
- 1
- Operating Temperature
- -20°C~65°C
- Application
- Speaker
- Package
- SOP
Product Description
Features
1. Equipped with BT 5.3 technology, supporting TWS dual-mode transmission, more stable connection, low latency and high fidelity.
2. Equipped with TPA3116 high-end amplifier chip, compatible with 2-8 Ω full impedance, driving home theater grade audio without pressure.
3. Support multi-mode input with one click switching, free selection of BT/USB/AUX/TWS, compatible with 99% of audio devices.
4. Equipped with a dedicated mobile app that allows for remote adjustment of volume, sound effects, and mode switching, making it easy to operate.
5. Equipped with protection mechanism, with overvoltage, undervoltage, overheating, and DC detection circuit protection, safe and reliable.
Parameter:
Model: YS-T100W
Power configuration: 12-24V/5A or above
Input sensitivity: 280mv
BT distance: 15 meters
BT: 5.3
Audio input: BT+USB+AUX
Audio output: Banana speaker jack (two speaker terminals)
Amplifier chip: TPA3116
Box mode: Supports
USB decoding: USB playback supports decoding of multiple formats (MP3, WAV, WMA, APE, FLAC) and can read most lossless files.
Output power: 100W
Frequency range: 20Hz-20KHz
Speaker impedance: 2-8 Ω
Signal to noise ratio: ≥ 98dB
Distortion: ≤ 0.5% THD
Protection mechanism: overvoltage, undervoltage, overheating, DC detection circuit protection
Support app: YSAudio for mobile phones
Output channel: 1.0
Box material: Zinc alloy
Product size: 137 * 84 * 31mm
Package Include：
1 * Power amplifier
1 * 3.5mm AUX connection cable
1 * 12V/5A power supply
Pros & Cons
Pros
- BT 5.3 TWS low latency, 100W TPA3116 drives 2-8Ω speakers.
- App control, multi-mode (BT/AUX), boost circuit.
- 12-24V wide input for outdoor/PC.
- High fidelity home theater grade.
Cons
- Mono only, not stereo.
- No built-in speaker.
- Heat up to 65°C limit.
- Assembly required for enclosure.
Common Questions
What chip and material in YS-T100W BT amplifier?
TPA3116 chip on module board, SOP package for mono 100W output.
What power supply and size for this TWS amp board?
DC12-24V input, compact for outdoor/PC; supports 2-8Ω speakers.
Compatibility of BT 5.3 amplifier with devices?
Bluetooth 5.3 TWS, app control, EU/US plugs; Android/iOS/PC.
How to use Ziqqucu 100W mono amp module?
Connect speakers, power 12-24V; multi-mode incl. AUX for home theater.
Shipping for amplifier board from Mainland China?
Low dissipation, -20~65°C; quick ship in protective packaging.
