DC1036L Uninterruptible Power Supply (UPS) 36W Digital Display Router Built-in Adapter Backup Power Supply 5V/9V/12V/15V/24V

Product Features:

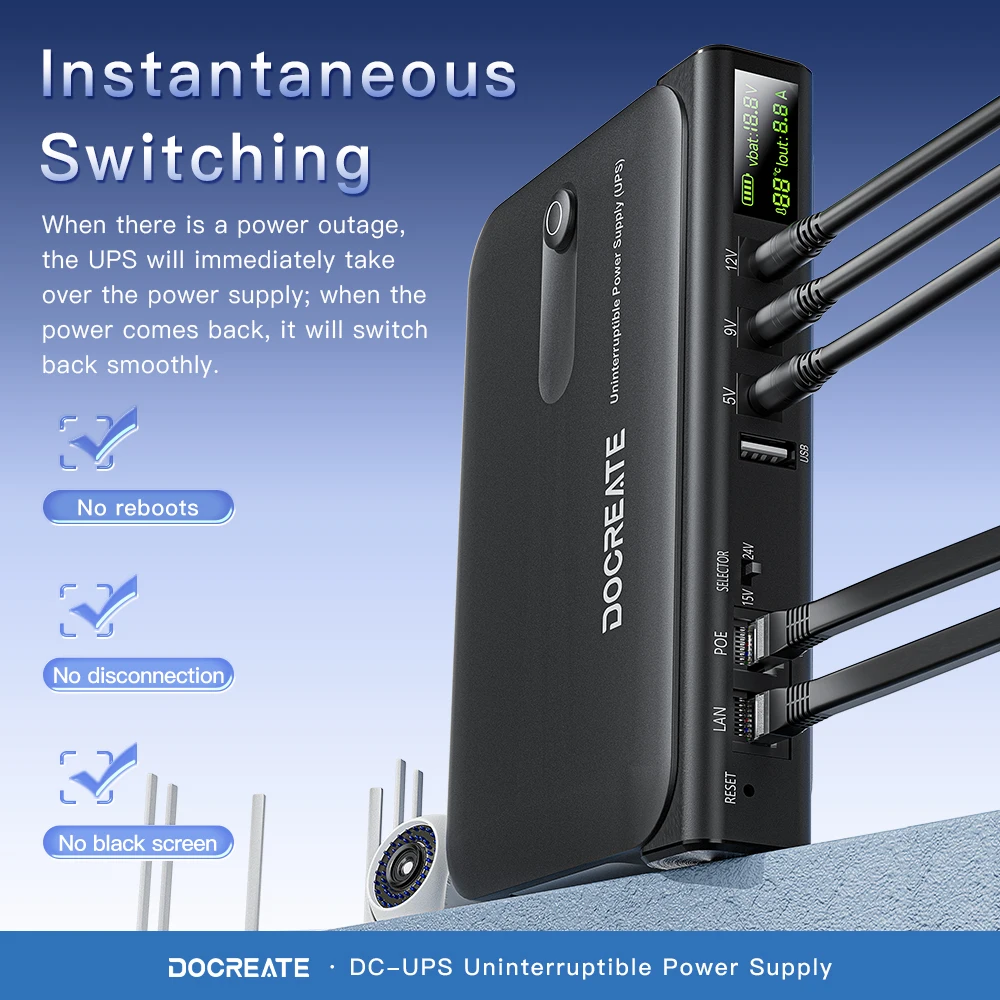

1. Designed for extended operation: No fear of power outages. Instantaneous, imperceptible switching ensures the UPS immediately takes over power supply during blackouts. Upon restoration, it smoothly reverts to mains power without requiring device reboots, network disconnections, or screen blackouts.

2. Overheating Protection: Features thermal shutdown. When internal circuit temperature exceeds 45°C, the temperature indicator on the display flashes and DC output ceases. Output resumes once temperature drops.

3. Replaceable Battery Design: Four flat-top 18650 batteries are easily removable for convenient replacement, ensuring uninterrupted operation when away from power sources.

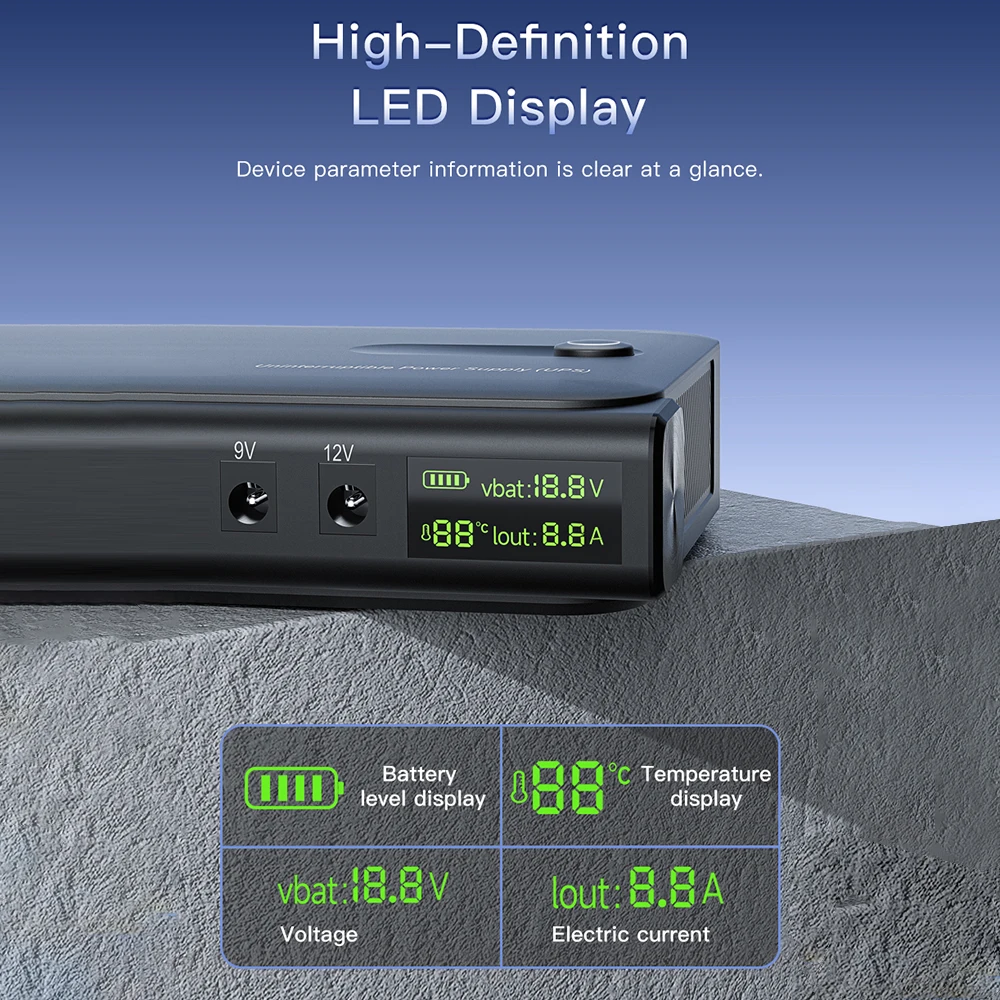

4. High-definition LED display: Clearly shows current, temperature, voltage, amperage, and battery level. Device parameters are immediately visible, providing an intuitive interface for monitoring operational status.

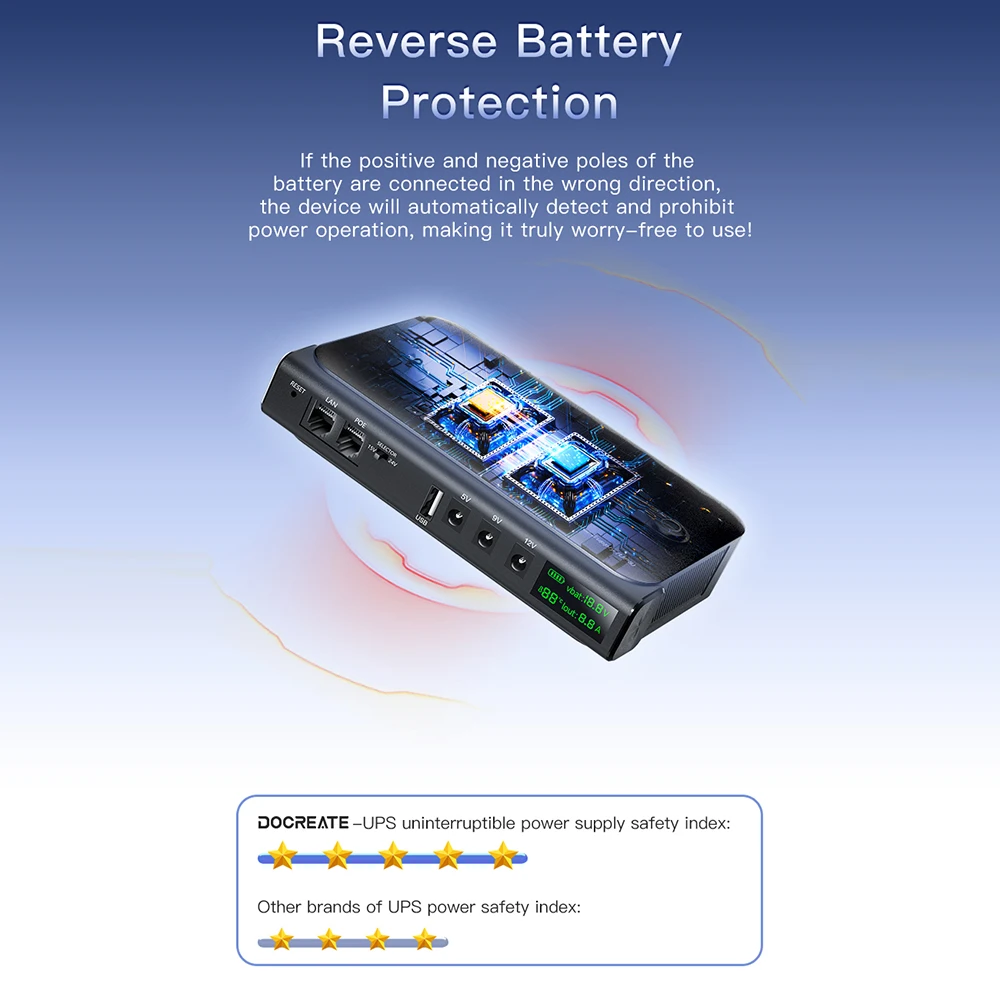

5. Reverse polarity protection: Given the specific nature of 18650 batteries, incorrect polarity connection can damage the device. This protection mechanism automatically detects and prevents operation when batteries are inserted incorrectly, ensuring worry-free use.

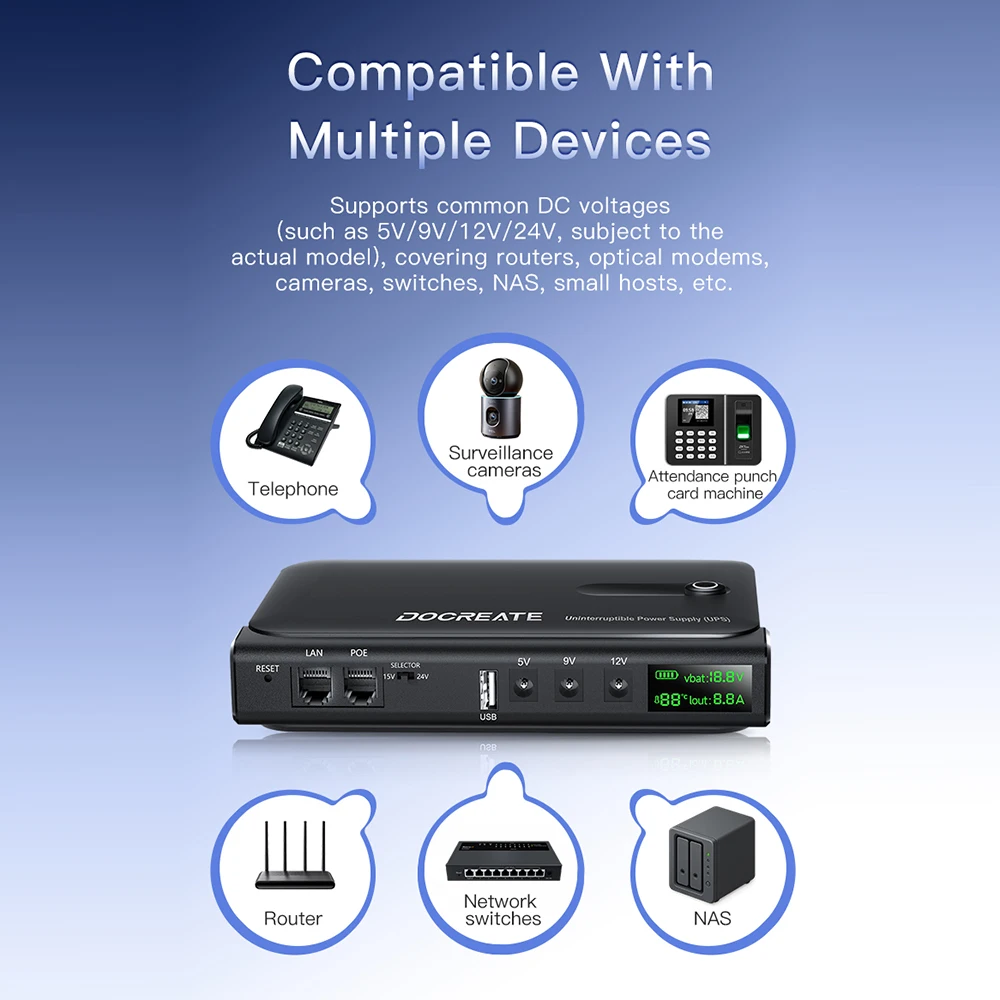

6. Multiple Output Voltage Ports: Supports common DC voltages including 5V, 9V, 12V, and 24V, catering to routers, optical modems, switches, NAS devices, and compact computers.

Product Specifications:

Product Name: Digital Display UPS Uninterruptible Power Supply

Input: AC 85-265V

Output Current: 16.4V DC 2.5A

Battery Model: 18650

Battery Capacity: >2000mAh × 4

Frequency: 50-60Hz

Total Output Power: 36W

Output Specifications:

USB 5V/2A

DC 5V/2A

DC 9V/2A

DC 12V/2A

LAN 15/24V-1A

POE 15/24V-1A

Operating Temperature: 0℃~45℃

Humidity: 10%-90%RH

Power Supply: Flat-top 18650 batteries*4 (not included in shipment)

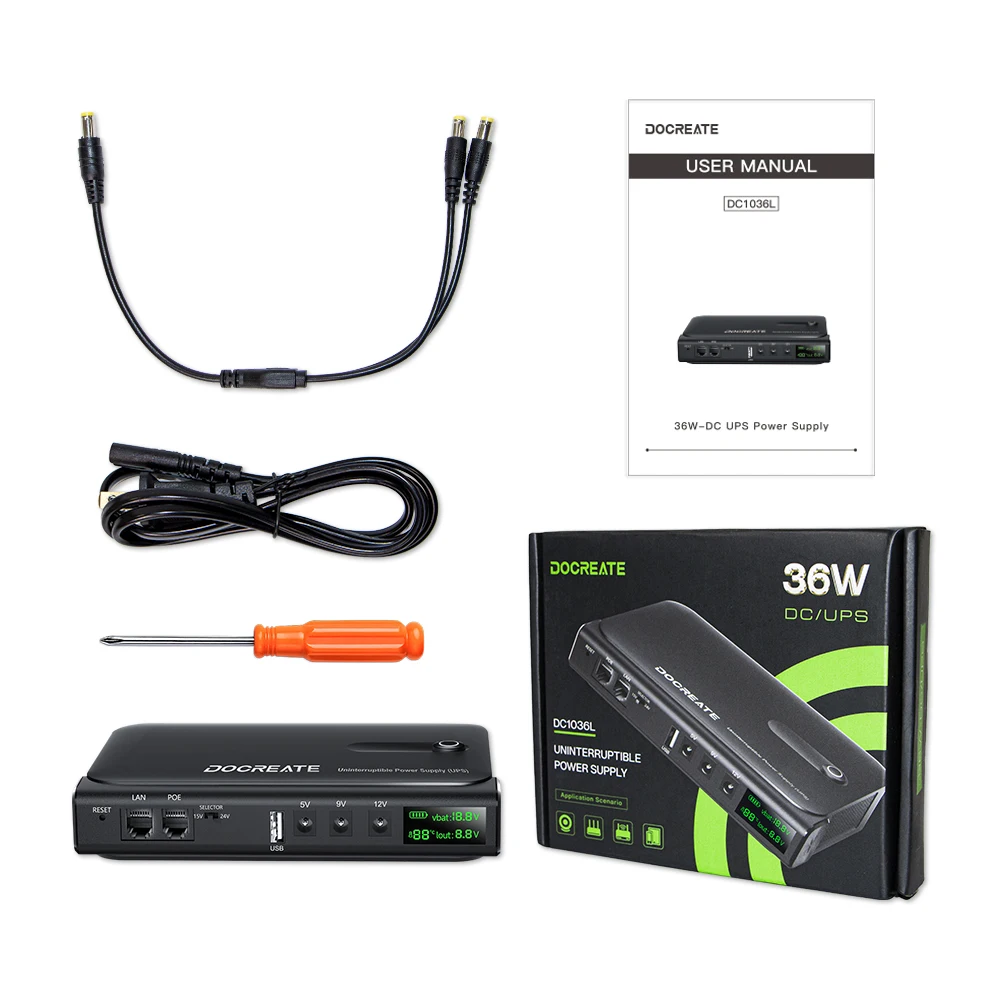

Shipment Contents:

UPS Uninterruptible Power Supply*1 (excluding batteries)

Power Cable*1

Dual-to-Single Cable*1

Single-to-Single Cable*1

Screwdriver*1

Chinese/English Instruction Manual*1
