ADS8681 Analog-to-Digital Converter Module ADC Module 16-Bit 1MSPS High Speed Data Acquisition Board, Dual/Unipolar Input
You will be redirected to AliExpress to complete your purchase
Specifications
- Brand Name
- NONE
- Origin
- Mainland China
- High-concerned chemical
- None
- Condition
- New
- Type
- Module
- Supply Voltage
- -
- Dissipation Power
- -
- is_customized
- Yes
- Quantity
- 1
- Operating Temperature
- -
Product Description
Product Introduction:
The ADS8681 is a high-performance, single-channel, 16-bit Successive Approximation Register (SAR) ADC module. It integrates a precision SAR ADC core, an analog front-end (AFE) driver, ±20V overvoltage protection, and a stable 4.096V on-chip reference. Operating from a single +5V supply, it offers software-selectable unipolar and bipolar input ranges with high input impedance (≥1MΩ), delivering reliable 16-bit accuracy at 1 MSPS. With terminal block and SMA input options, this module is ideal for demanding applications such as sensor signal acquisition, data acquisition systems, semiconductor testing, and servo drive control.
Specifications:
Chip Model: ADS8681
Module Type: 16-bit Analog-to-Digital Converter (ADC)
Power Supply: Single +5V DC
Channels: 1 (Single Channel)
Resolution: 16-bit
Reference Voltage: Internal 4.096V
Sampling Rate: 1 MSPS (maximum)
Input Range: Software-selectable
Bipolar: ±2.56V, ±5.12V, ±6.144V, ±10.24V, ±12.288V
Unipolar: 0~5.12V, 0~6.144V, 0~10.24V, 0~12.288V
Input Impedance: ≥1 MΩ
Input Bandwidth: 15 kHz (small-signal)
Communication: SPI interface, up to 66.67 Mbps
Included Code Examples: For STM32 (STM32F103ZET6) & FPGA (EP4CE10F17)
Protection: Reverse-connection power protection
Input Type: Single-ended
Input Interface: Terminal block or SMA connector

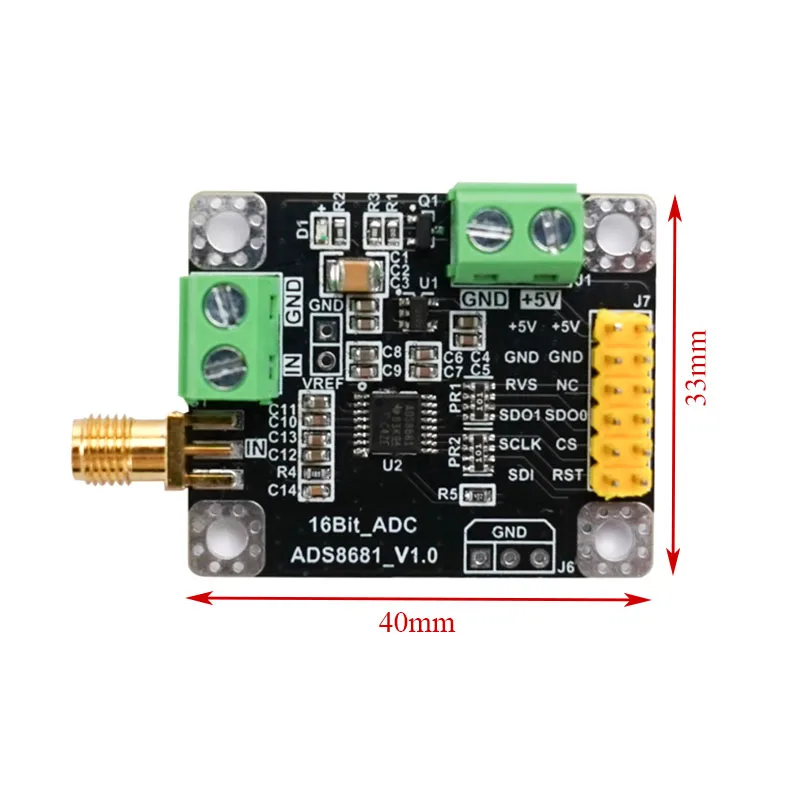

Dimensions: 40mm x 33mm (L x W)
